R0328

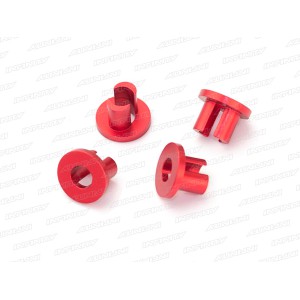

ALUMINIUM CENTERING BUSHING (IF18-2)

Machined from high quality A7075 aluminium material. IF18-2 knuckle upper and lower insert. Prevents misalignment during a crash and enhances steering response during cornering. This bushing is used for central alignment of the upper pivot (0mm kit standard zero offset).

When assembling these parts first remove the front knuckle upper. Place the offset bush into the knuckle upper from the outside. Then pass both M3x14mm slim head screws through the knuckle upper from the inside and tighten the 3mm nylon nut on the outside.
